攪拌車備用油管使用方法的具體步驟

來源：http://ablank.cn 瀏覽：0發表時間：2022-08-05

攪拌車液壓油管工作原理是通過攪拌車底盤上的取力器，將發動機的動力傳遞給液壓油泵，產生高壓液壓油。高壓液壓油驅動液壓馬達高速旋轉，經減速機產生很大的轉矩，驅動攪拌筒轉動。利用螺旋傳遞原理，攪拌筒內置的葉片不斷的對混凝土進行強制攪拌，不于出現混凝土凝結的現象。

The working principle of the hydraulic oil pipe of the mixer truck is to transmit the power of the engine to the hydraulic oil pump through the power take-off on the chassis of the mixer truck to generate high-pressure hydraulic oil. The high-pressure hydraulic oil drives the hydraulic motor to rotate at a high speed, and a large torque is generated by the reducer to drive the mixing drum to rotate. Based on the principle of screw transmission, the blades built in the mixing drum continuously force the concrete to mix, so as not to cause the concrete to set.

下面自上料攪拌車廠家再來講講攪拌車備用油管使用方法的具體步驟：

Next, let's talk about the specific steps of using the spare oil pipe of the mixer truck from the manufacturer of the charging mixer truck:

⑴ 準備工作準備好三根緊急驅動軟管，卸下接管和接頭蓋。

⑴ preparation prepare three emergency drive hoses, and remove the connecting pipe and connector cover.

⑵ 故障車(被驅動車)的操作

(2) operation of fault vehicle (driven vehicle)

① 將故障車的發動機熄火;

① Shut down the engine of the faulty vehicle;

② 將緊固螺母(左右各有一個)朝左旋松;

② Unscrew the fastening nut (one on the left and one on the right) to the left;

③ 再將旋鈕朝右旋轉，直到不能再旋為止;

③ Then rotate the knob to the right until it can no longer be rotated;

④ 將高壓軟管從馬達接頭處卸下;

④ Remove the high-pressure hose from the motor connector;

⑤ 將緊急驅動軟管接到馬達接頭上;

⑤ Connect the emergency drive hose to the motor connector;

⑥ 把緊急驅動軟管上的接管與故障車卸下的高壓軟管相接，以防漏油。

⑥ Connect the connecting pipe on the emergency drive hose with the high-pressure hose removed by the faulty vehicle to prevent oil leakage.

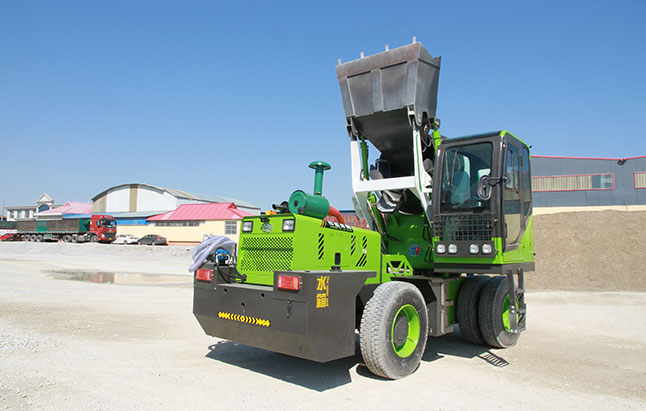

自上料攪拌車廠家

⑶ 攪拌車(驅動車)的操作

(3) operation of mixer truck (drive truck)

① 將操作手柄于空檔位置;

① Set the operating handle to the neutral position;

② 將發動機熄火;

② Shut down the engine;

⑶ 攪拌車(驅動車)的操作

(3) operation of mixer truck (drive truck)

① 將操作手柄于空檔位置;

① Set the operating handle to the neutral position;

② 將發動機熄火;

② Stop the engine;

③ 將高壓軟管從高壓油管處卸下;

③ Remove the high-pressure hose from the high-pressure oil pipe;

④ 將緊急驅動軟管接到高壓油管上;

④ Connect the emergency drive hose to the high-pressure oil pipe;

⑤ 用緊急驅動軟管上的接頭蓋將驅動車的高壓軟管蓋起，以防漏油。

⑤ Cover the high-pressure hose of the drive vehicle with the connector cover on the emergency drive hose to prevent oil leakage.

⑷ 啟動攪拌車的發動機。

(4) start the engine of the mixer truck.

⑸ 將攪拌車的操作手柄撥“出料”位置，使故障車內的混凝土排出。

(5) turn the operating handle of the mixer truck to the "discharge" position to discharge the concrete in the faulty truck.

⑹ 緊急驅動完畢后，使兩車各自恢復原狀。

(6) after the emergency drive is completed, the two vehicles shall be restored to the original state.

攪拌車上裝液壓油管的連接辦法：發動機輸出的動力經過取力器轉接到液壓油泵，液壓油泵配有兩根油管，一根連接液壓油箱，一個連接液壓換向閥（兩根油管粗細不同），換向閥是四口的，其中兩口連接液壓馬達，另一口連接液壓油散熱器的出油口，連接就完成了。更多注意事項就來我們網站http://ablank.cn咨詢了解吧。

Connection method for installing hydraulic oil pipes on the mixer: the power output from the engine is transferred to the hydraulic oil pump through the power takeoff. The hydraulic oil pump is equipped with two oil pipes, one is connected to the hydraulic oil tank and the other is connected to the hydraulic reversing valve (the two oil pipes are different in thickness). The reversing valve has four ports, two of which are connected to the hydraulic motor and the other is connected to the oil outlet of the hydraulic oil radiator. The connection is completed. Come to our website for more precautions http://ablank.cn Consult and understand.
