中科聚峰自動上料攪拌車的特征是什么？

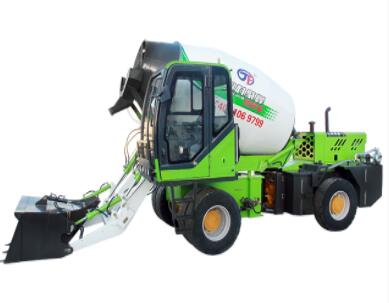

中科聚峰自動上料攪拌車是一種集自動上料、攪拌、運輸、自動卸載于一體的小型工程建設用混凝土攪拌車。它由大功率柴油機、液力變流器、前后四輪驅動橋、給料裝置、給料斗、卸料斗、加長卸料斗、機架、攪拌罐、攪拌專用行星減速器、液壓系統、電控系統、自動給水系統等組成。自動上料混合機具有許多優點，可大大提高生產效率。下面我們將詳細介紹自動給料混合器的特點。
Zhongke Jufeng automatic loading mixer is a small-scale construction concrete mixer that integrates automatic loading, mixing, transportation and automatic unloading. It consists of high-power diesel engine, hydraulic converter, front and rear four-wheel drive axle, feeding device, feeding hopper, unloading hopper, extended unloading hopper, frame, mixing tank, special planetary reducer for mixing, hydraulic system, electric control system, automatic water supply system, etc. The automatic feeding mixer has many advantages, which can greatly improve the production efficiency. Next, we will introduce the features of the automatic feed mixer in detail.
一、自動上料攪拌車的特點
1、 Features of automatic loading mixer
1. 行走系統由發動機通過液力變矩器、前傳動軸和后傳動軸、前橋和后橋來操作。液壓方向盤驅動，大大減小轉彎半徑，更適合現場作業，特別是小空間施工。采用液力變矩器，減少了對發動機的沖擊，延長了發動機的使用壽命。采用無級變速電子控制閥，控制方便。
1. The traveling system is operated by the engine through the hydraulic torque converter, front drive shaft and rear drive shaft, front axle and rear axle. Hydraulic steering wheel drive, greatly reduce the turning radius, more suitable for field operations, especially small space construction. The adoption of hydraulic torque converter reduces the impact on the engine and prolongs the service life of the engine. Stepless electronic control valve is adopted, which is easy to control.
2. 液壓系統采用恒功率可變活塞泵，減少了發動機的功率損失。
2. Constant power variable piston pump is used in the hydraulic system to reduce the power loss of the engine.
3.攪拌槽的旋轉由液壓馬達通過專用行星減速器驅動。行星減速機的輸出軸可以以一定的角度擺動，以滿足路面惡劣條件下攪拌槽的跳動。攪拌車的攪拌槽配有調速閥，可準確控制攪拌槽的攪拌速度。
3. The rotation of mixing tank is driven by hydraulic motor through special planetary reducer. The output shaft of the planetary reducer can swing at a certain angle to meet the beating of the mixing tank under the adverse conditions of the road. The mixing tank of the mixer is equipped with a speed regulating valve, which can accurately control the mixing speed of the mixing tank.
4、物料干燥上料，按設計比例由鏟臂、動臂缸、斗斗后鏟、電子稱量、自動上料。加料料斗安裝成一定角度，確保加料順利進行。用于放電的放電槽可以旋轉并通過鎖定機構固定在適當?shù)奈恢?。用于加長出料罐長度的加長出料罐可折疊放置于其固定位置，并通過掛鉤固定于出料罐上。
4. Materials are dried and loaded by shovel arm, boom cylinder, bucket back shovel, electronic weighing and automatic loading according to the designed proportion. The feeding hopper is installed at a certain angle to ensure the smooth feeding. The discharge cell for discharging can be rotated and fixed in a proper position by a locking mechanism. The extended discharging tank for lengthening the length of the discharging tank can be folded and placed in its fixed position, and fixed on the discharging tank through a hook.
5. 進水系統配有定量自吸泵，并設有定量控制器自動定量進水。
5. The water inlet system is equipped with quantitative self-priming pump and quantitative controller for automatic quantitative water inlet.
6. 攪拌罐固定在底座上三點支承，前端與固定在底座上的齒輪箱輸出法蘭相連接，可以改變傾斜角。攪拌槽由兩個帶有錐形軸承的滾子上的焊接軌道支撐。喂料、攪拌和出料都是通過壓板系統來完成的。攪拌槽向前旋轉，供料與混凝土攪拌;反向旋轉，在螺旋槳葉片的推動下，從混凝土出口出來。
6. The mixing tank is fixed on the base with three supports, and the front end is connected with the output flange of the gearbox fixed on the base to change the inclination angle. The mixing tank is supported by welded rails on two rollers with tapered bearings. Feeding, mixing and discharging are all done by pressing plate system. The mixing tank rotates forward, feeds and mixes with the concrete; reversely rotates, under the impelling of the propeller blade, it comes out from the concrete outlet.
以上是中科聚峰自動上料攪拌車廠家為大家介紹的相關內容，想要了解更多產品信息，歡迎訪問網站：http://ablank.cnThe above is the relevant content introduced by the manufacturer of Zhongke Jufeng automatic loading mixer. For more product information, please visit the website: https://www.jfjiabanche.com
